High-productivity 4-spindle CNC oil hole drilling SPM designed for accurate, repeatable and high-volume drilling operations. The machine is equipped with 4 Nos. HARDY spindles, configured for simultaneous machining operations to achieve higher productivity and reduced cycle time. Two HARDY spindles are dedicated for Ø2 mm horizontal oil hole drilling, while the other two HARDY spindles are configured for Ø6 mm counter-drilling. This multi-spindle arrangement enables multiple drilling operations to be completed efficiently in a single setup. The machine is equipped with automatic pneumatic job clamping and de-clamping, automatic coolant and lubrication systems, and servo motor-driven axis movement for precise and reliable positioning. HIWIN make linear rails and blocks provide smooth and accurate axis movement, while the HUST CNC controller provides user-friendly CNC control and programmable machining cycles. Key Features: 4 Nos. HARDY Spindles 2 Spindles for Ø2 mm Horizontal Oil Hole Drilling 2 Spindles for Ø6 mm Counter-Drilling HUST CNC Controller Servo Motor-Driven Axes HIWIN Linear Rails & Blocks Automatic Pneumatic Clamping & De-Clamping Automatic Coolant System Automatic Lubrication System Programmable CNC Drilling Cycles Accurate & Repeatable Hole Positioning Reduced Cycle Time & Operator Intervention Designed for High-Volume Production

High-productivity CNC sliding head SPM designed for automatic machining of rod-type components. The machine features a sliding Z-axis on a horizontal slide with a collet-based workholding system for secure and accurate job holding. The machine is equipped with X and Y axes mounted on the machine structure, enabling flexible tool positioning and machining operations. A 3,000 RPM spindle provides reliable and efficient machining performance. The machine incorporates automatic job clamping and de-clamping, reducing operator intervention and improving cycle time and production consistency. Key Features: CNC Sliding Head Configuration Sliding Z-Axis on Horizontal Slide Collet-Based Rod Holding System Spindle Speed: 3,000 RPM Automatic Job Clamping & De-Clamping Suitable for Automatic & High-Volume Production Reduced Operator Intervention Consistent Machining Accuracy

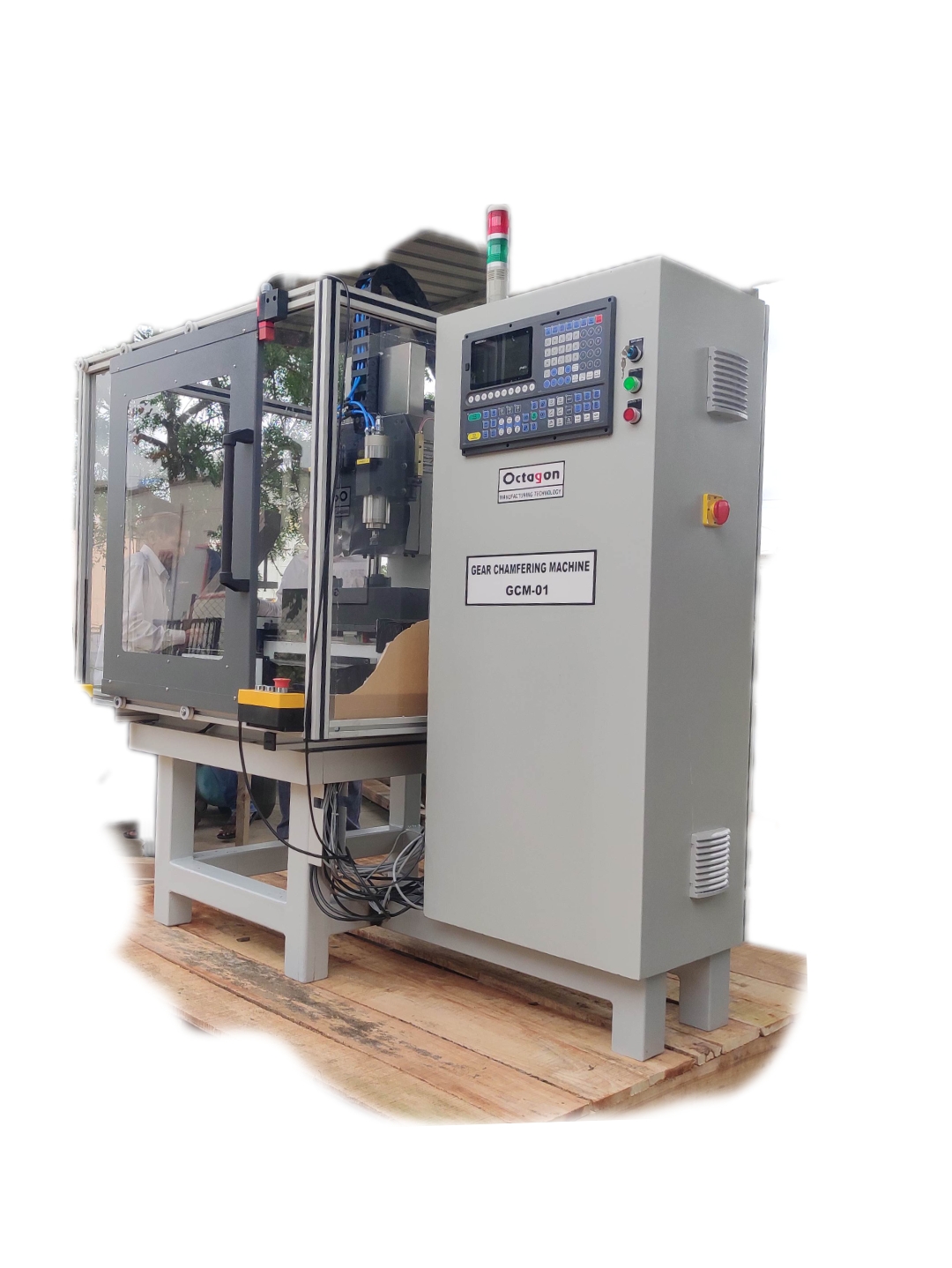

High-productivity twin-spindle CNC gear teeth chamfering SPM designed for high-speed, accurate and consistent chamfering of gear teeth. The machine is equipped with a HUST CNC controller and two high-speed spindles with speeds up to 24,000 RPM, enabling efficient and high-volume production. The machine features automatic pneumatic clamping and de-clamping for quick and reliable workpiece loading and unloading, reducing operator intervention and cycle time. The twin-spindle configuration enables simultaneous processing, providing higher productivity and consistent chamfer quality. Key Features: HUST CNC Controller Twin-Spindle Configuration Spindle Speed: Up to 24,000 RPM Automatic Pneumatic Clamping & De-Clamping High-Speed Gear Teeth Chamfering Programmable CNC Chamfering Cycle Consistent Chamfer Quality Suitable for High-Volume Production Reduced Cycle Time & Operator Dependency
