The right SPM drilling machine is determined by the component, hole pattern, material and takt time—not by spindle count or a low quoted price. By the end, you will have a practical specification for comparing configurations, workholding, automation, capacity, total cost and production acceptance before requesting a quotation in Pune.
Key takeaways
- Choose spindle count from the number, spacing and sequence of holes.
- Specify tooling for the material, diameter, depth and required hole quality.
- Calculate capacity from loading, drilling, tool changes, inspection and unloading.
- Compare SPM drilling machine price in Pune using total ownership cost.
What an SPM Drilling Machine Is—and When It Beats a VMC
An SPM drilling machine is engineered around one defined part, hole pattern, tooling package and target cycle time. It is not a catalogue drill with a fixture added later.
| Option | Flexibility | Setup and automation | Operations, space and volume |
|---|---|---|---|
| SPM | Low to moderate | Short repeatable setup; dedicated automatic loading | Few defined operations; compact; medium to high volume |
| VMC or CNC machining centre | High | Longer programming and setup; flexible operator loading | Many unrelated operations; larger floor area; low to medium volume |
| Radial drilling machine | Moderate | Manual positioning and loading | Large parts, few holes; low volume |
| Multi-spindle drill press | Low | Fast fixed drilling; limited adjustment | Repeated holes together; compact; high volume |
| Transfer line | Very low | Highly automated; complex changeover | Many sequential operations; large area; very high volume |
For a CNC SPM drilling machine in Pune, make the specification explicit: controlled axes, travels, positioning accuracy, repeatability, interpolation capability, controller model, tool-change method, and inclusion of tapping, reaming and probing.
- Send the supplier part drawings, material, hole diameters and depths, hole count, positional tolerances, annual volume, batch size and target cycle time.
- Reject the SPM when part changes are frequent, the design is still uncertain, or you need many unrelated machining operations. A quotation is incomplete if it omits these inputs.
Choose the Spindle and Axis Configuration from the Hole Pattern
Choose the configuration from the hole pattern, not from spindle count. Check hole diameter, depth, cross-holes, interrupted cuts, positional accuracy, production volume and target cycle time before you buy an SPM drilling machine.
| Configuration | Best fit | Check before approval |
|---|---|---|
| Single-axis | One drilling direction with automatic positioning between holes | Confirm stroke, hole depth, peck-cycle capability and tool withdrawal clearance |
| Two-axis | Controlled movement across a plane or between two coordinated locations | Verify travel, interpolation, cross-hole access and fixture rigidity |
| Multi-spindle | Repeated holes drilled simultaneously at consistent spacing | Confirm pitch accuracy, spindle synchronisation, tool life and whether separate reaming is required |
Build the fixture from the drawing datums. Seat the part on stable datum surfaces, locate it with hardened pins, and clamp close to the drilling forces without distorting thin walls.
Set the loading direction so the operator or loader can reach the part, leave space for chips and coolant to escape, and provide tool access for deep holes and finishing tools.
Use manual loading for low volume or frequent part changes; choose automatic loading for repeatable presentation and higher volume. Add pallet transfer when loading can occur away from the cutting station. A dedicated fixture becomes worthwhile when one part family demands short cycles.
Specify part-presence sensing, misload detection and finished-part confirmation. For an automated drilling machine in Pune, also require raw-part orientation, recipe or barcode selection, jam recovery, rejected-part segregation and restart logic after air or power failure.
Match the Machine to Material and Required Hole Quality
Material sets the machine size: aluminium permits high speed and feed with sharp carbide drills; cast iron needs rigid support and chip clearance; mild steel demands balanced torque and coolant; alloy steel needs higher thrust, torque and longer cycle time; stainless steel needs sharp geometry, firm feed and abundant coolant to prevent work-hardening.
- For a cnc spm drilling machine in pune, request torque-speed curves, thrust capacity, feed-force capacity and duty rating at the actual drilling speed. Check T in N·m = 9,550 × P in kW ÷ n in rpm; peak motor power alone can hide insufficient torque.
- Reject any “maximum drill diameter” claim without its material, drill type, depth, cutting speed, feed and cycle data. Deep, cross-hole or interrupted drilling can require peck cycles, high-pressure coolant and extra chip evacuation.
- Define each drawing characteristic in the specification: hole diameter tolerance to reaming or boring, position to CNC interpolation or gauging, perpendicularity and straightness to fixture and tool control, surface finish to honing, burr limit to tool selection, drill runout to spindle inspection, and repeatability to trial data.
Drilling alone is insufficient when size, position, straightness or finish exceeds the drill’s capability. Require coolant pressure, filtration rating, chip removal, tool-life records and acceptance results from production material; an spm drilling machine in pune should be judged by accepted holes, not spindle speed.
Calculate Real Capacity from the Complete Production Cycle
Accepted parts per shift, not spindle count or theoretical holes per minute, is the capacity figure that matters. Calculate it from the complete cycle: available production minutes × effective running fraction ÷ full cycle time × (1 − scrap and rework rate).
- Record loading, unloading, part orientation, clamping, rapid approach, drilling feed, peck cycles, tool withdrawal, tool changes, coolant settling, inspection, pallet transfer and fixture cleaning.
- Measure expected downtime separately, including tool changes, minor stops, jams, maintenance and operator delays. Use your measured process data, not invented machine claims.
- Define the automation states for an automated drilling machine in Pune: recipe selection, barcode reading, raw-part presentation, datum and presence verification, misload detection, finished-part confirmation, jam recovery, rejected-part segregation and restart after air or power failure.
- Run a production-representative trial before you buy an SPM drilling machine. Use the actual material, drills, operator method and inspection equipment, then record cycle time, tool life, repeatability and alarm recovery.
A single good sample does not prove stable output. Require repeated parts and first-off inspection results, because a short quoted cycle can hide manual orientation, inspection or recovery work that consumes the shift. Adjust the final capacity when scrap or rework removes accepted parts, not merely completed drilling cycles.
Compare SPM Drilling Machine Price in Pune as Total Cost
A quoted spm drilling machine price in Pune is useful only when every inclusion and exclusion is visible. Request separate line items for:
- Spindles and motors; special drills and collets; dedicated fixture and workholding
- Guarding, automatic loading, coolant tank and filtration, chip conveyor and gauging
- Electrical controls, programming, freight, unloading, erection, installation, commissioning, training and spare parts
- Production proving, including your material, tooling, drawings, inspection method and acceptance cycle
Compare the spm drilling machine in Pune by cost per accepted part, not by base price:
Cost per accepted part = machine and tooling amortization + labour + utilities + consumables + tool replacement + rejected-part cost + preventive maintenance + downtime, divided by accepted output.
| Quotation comparison | What to verify | Cost consequence |
|---|---|---|
| Base machine | Spindle count, motor rating, electrical load and air consumption | Low price can exclude production hardware |
| Complete cell | Loading, guarding, coolant, chips, gauging and controls | Higher purchase cost can reduce labour and downtime |
| Proven process | Tool life, repeatability, scrap rate and alarm recovery | Catalogue cycle time may overstate capacity |
Assign Pune-site responsibility for foundation, levelling, electrical connection, compressed air, coolant disposal, networking, statutory inspection and operator availability. Ask OCTAGON MANUFACTURING TECHONOLOGY for a drawing-based proposal, itemised scope, FAT/SAT protocol and local service terms.
Before acceptance, check ISO 12100, ISO 13849-1 and IEC 60204-1 compliance, then record the warranty start date, spare-parts terms and guaranteed response time.
Related products

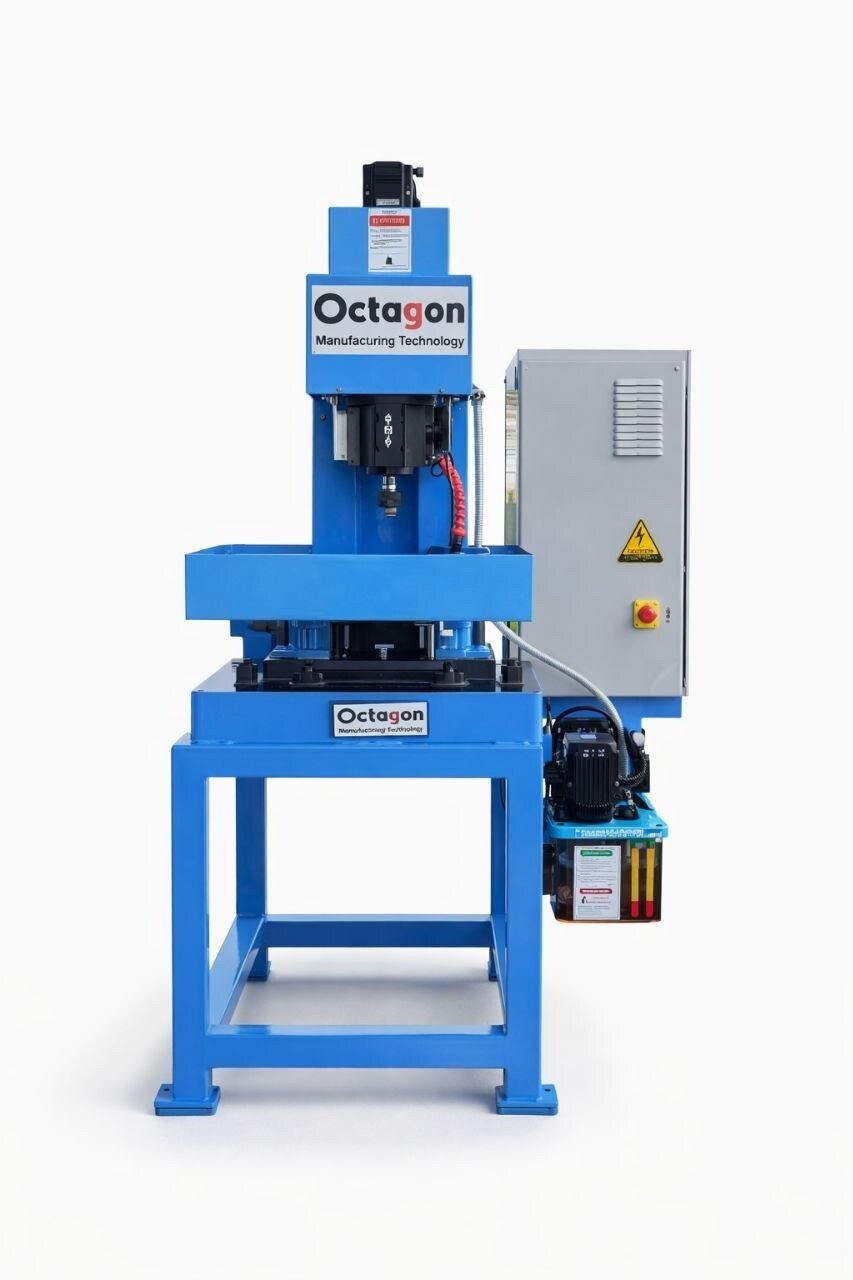

 | spm cnc Single Axis and Two Axis CNC Drilling SPM SINGLE-AXIS CNC DRILLING MACHINE – OCTADRILL D50 Compact and efficient CNC drilling machine designed for high-speed, accurate drilling operations. View product → |
